FRP pipes | Glass fiber reinforced plastic | GRE pipe | Glass fiber reinforced epoxy
Product Specification:
| MPa（kgf/cm2) | |
| Extending intension along the circle | ≧294(3000) |
| Elastic intension along the circle | ≧24517(250000) |
| Extending intension along the shaft | ≧147(1500) |
| Elastic intension along the shaft | ≧122500(125000) |
| Anti pressure intension | ≧235(2400) |

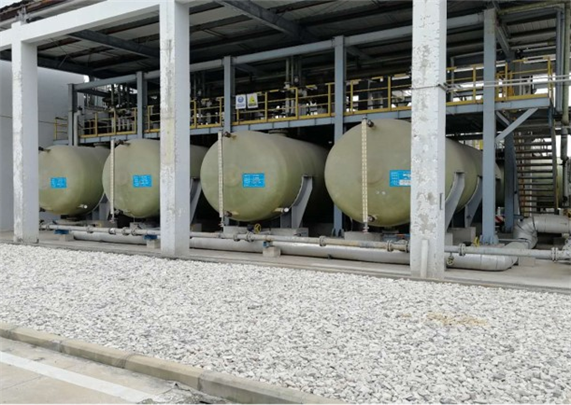

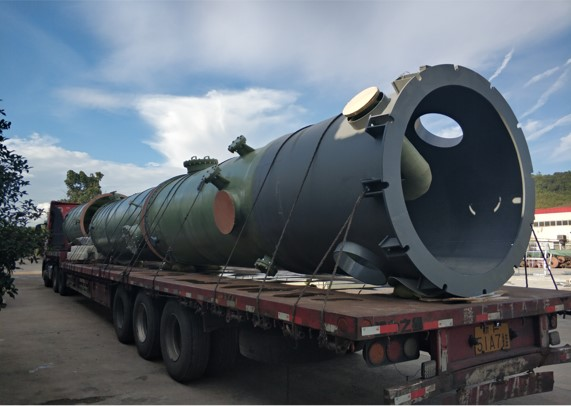

Photos of Products:
FRP pipe data sheet:
|
DN(mm) |
Thickness(mm) |
||
|
0.6Mpa |
1.0Mpa |
1.6Mpa |
|
|
15 |
4.5 |
4.5 |
4.5 |
|
20 |
4.5 |
4.5 |
4.5 |
|
25 |
4.5 |
4.5 |
4.5 |
|
32 |
4.5 |
4.5 |
4.5 |
|
40 |
4.5 |
4.5 |
4.5 |
|
50 |
4.5 |
4.5 |
4.5 |
|
65 |
4.5 |
4.5 |
4.5 |
|
80 |
4.5 |
4.5 |
4.5 |
|
100 |
4.5 |
4.5 |
5 |
|
125 |
4.5 |
4.5 |
6 |
|
150 |
4.5 |
6 |
6.5 |
|
200 |
4.5 |
6 |
8 |
|
250 |
4.5 |
6 |
9 |
|
300 |
4.5 |
7 |
10.5 |
|
350 |
4.5 |
8.5 |
12 |
|
400 |
4.5 |
8.5 |
13 |
|
450 |
6 |
10 |
14 |
|
500 |
6 |
10 |
14 |
|
600 |
7.5 |
12.5 |
16 |
|
700 |
7.5 |
13.7 |
21 |
|
800 |
9 |
15 |
23 |
|
900 |
10.5 |
16.5 |
25.5 |
|
1000 |
12.5 |
18 |
28 |
|
1200 |
13.7 |
|
|
|
1400 |
16.3 |
|
|
FRP fittings data sheet:
|
Diameter |
A |
R |
G |
L |
H |
H1 |
Minimum wall thickness of the pipe under different pressure |
|||||
|
0.6MPa |
t |
1.0MPa |
t |
1.6MPa |
t |
|||||||
|
DN15 |
100 |
120 |
50 |
100 |
50 |
100 |
5 |
12 |
5 |
14 |
5 |
18 |
|
DN20 |
110 |
120 |
50 |
110 |
50 |
120 |
5 |
14 |
5 |
16 |
5 |
20 |
|
DN25 |
120 |
130 |
55 |
120 |
50 |
150 |
5 |
14 |
5 |
16 |
5 |
20 |
|
DN32 |
130 |
150 |
60 |
130 |
100 |
150 |
6 |
16 |
6 |
18 |
6 |
24 |
|
DN40 |
140 |
150 |
60 |
140 |
100 |
150 |
6 |
16 |
6 |
18 |
6 |
24 |
|
DN50 |
150 |
150 |
65 |
150 |
150 |
150 |
6 |
16 |
6 |
20 |
6 |
28 |
|
DN65 |
175 |
150 |
80 |
150 |
150 |
150 |
6 |
16 |
6 |
22 |
6 |
28 |
|
DN80 |
175 |
150 |
95 |
150 |
150 |
150 |
6 |
18 |
6 |
24 |
7 |
28 |
|
DN100 |
200 |
150 |
95 |
155 |
150 |
150 |
6 |
18 |
6 |
24 |
8 |
31 |
|
DN125 |
250 |
225 |
110 |
200 |
150 |
150 |
6 |
20 |
7 |
26 |
9 |
31 |
|
DN150 |
250 |
225 |
125 |
200 |
150 |
200 |
6 |
20 |
8 |
26 |
10 |
34 |
|
DN200 |
300 |
300 |
125 |
250 |
200 |
200 |
6 |
24 |
8 |
31 |
14 |
37 |
|
DN250 |
350 |
375 |
155 |
300 |
250 |
240 |
8 |
28 |
10 |
34 |
15 |
43 |
|
DN300 |
400 |
450 |
185 |
350 |
250 |
270 |
8 |
34 |
12 |
40 |
19 |
48 |
|
DN350 |
450 |
525 |
215 |
400 |
300 |
340 |
10 |
37 |
174 |
43 |
22 |
52 |
|
DN400 |
500 |
600 |
250 |
450 |
300 |
340 |
10 |
40 |
16 |
46 |
25 |
54 |
|
DN450 |
525 |
675 |
280 |
500 |
300 |
400 |
12 |
43 |
18 |
48 |
28 |
57 |
|
DN500 |
550 |
750 |
310 |
550 |
300 |
400 |
12 |
46 |
20 |
52 |
31 |
60 |
|
DN600 |
600 |
900 |
375 |
600 |
300 |
450 |
15 |
52 |
24 |
58 |
38 |
70 |
|
DN700 |
700 |
1050 |
435 |
650 |
370 |
500 |
18 |
58 |
27 |
64 |
|
|
|
DN800 |
750 |
1200 |
500 |
700 |
370 |
500 |
20 |
64 |
31 |
70 |
|
|
|
DN900 |
825 |
1350 |
560 |
750 |
370 |
550 |
22 |
70 |
34 |
76 |
|
|
|
DN1000 |
900 |
1500 |
625 |
800 |
370 |
550 |
24 |
76 |
38 |
82 |
|
|
|
DN1200 |
1050 |
1800 |
680 |
900 |
370 |
650 |
25 |
80 |
41 |
|
|
|
|
DN1400 |
1200 |
2100 |
720 |
1000 |
370 |
650 |
27 |
90 |
44 |
|
|
|
Note: The thickness and related dimensions in the table are for reference only, and the design shall prevail according to the specific conditions of use.The connection of flange can be adapted to HG,JB,GB,ASTM,DIN,NF,JIS and other standards
Product Description:
Choice different type of resin for anti-corrosion. It can be applied in acid,alkali,salt,oil,sea water and organic solvent.
Light weight,simple maintenance and good durability.
Tube length less than 12m,easy to install.
FRP pipe sizes range from 15mm to 4000mm in diameter,Pipe’s working pressure resistance of 0.6~1.6Mpa,has strong adaptability
High conveying capacity because of FRP has very smooth inner wall(N≦0.0084)
Higher penetration and seepage rate than the traditional material tube cultivated land
