Product Specification:
|
Items |
PVC/FRP |
PP/FRP |
CPVC/FRP |
|
Anti extension intension(Mpa) |
≧140 |
≧70 |
≧120 |
|
Bending intension(Mpa) |
≧180 |
≧95 |
≧180 |
|
Heat expanding coefficient(10-6/℃) |
32 |
68 |
32 |
|
Heat conduction coefficient(M.K) |
≧0.59 |
≧0.59 |
≧0.59 |
|
Long time operation temperature(℃) |
-25~85 |
-25~120 |
-25~+105 |
|
Test on heat and cold exchanging(-40℃~80℃)≧100times |
No layer separation |
No layer separation |
No layer separation |
|
Anti impact intension(KV/mm) |
20~40 |
20~40 |
20~40 |
|
Anti impact intension(KJ/m2) |
≧21.5 |
≧21.5 |
≧21.5 |
|
Anti cut intension between layers(Mpa) |
8.5 |
4.5 |
8.5 |

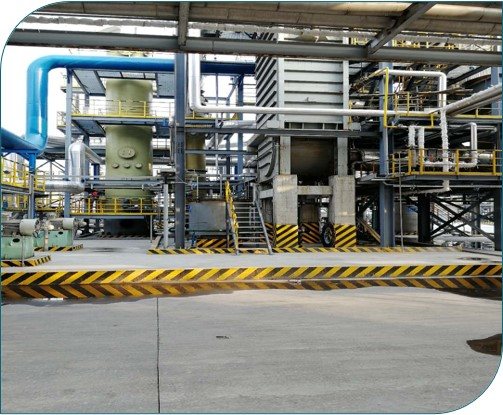

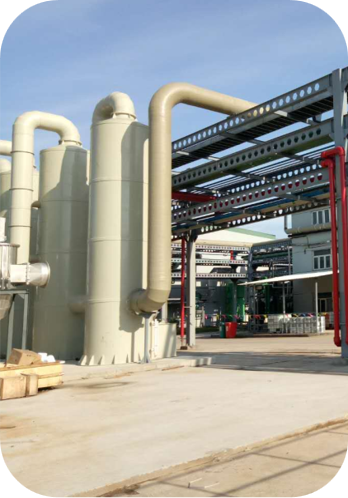

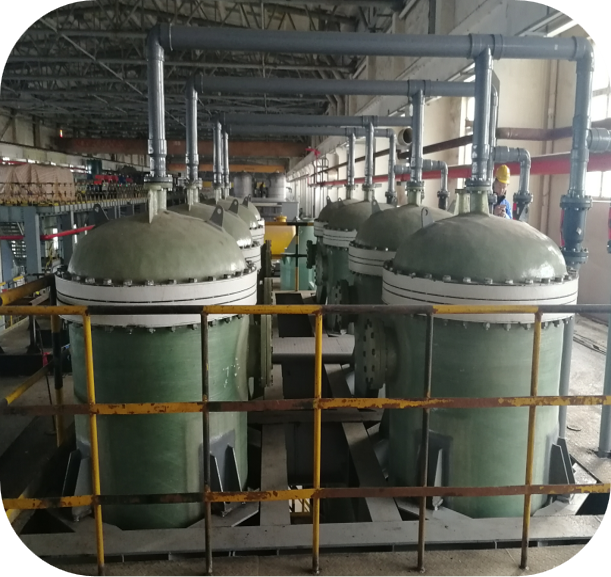

Photos of Products:
Composite FRP pipe technical data sheet:
|
Dimensions DN |
R |
H1 |
H2 |
H3 |
H4 |
C |
|
DN15 |
45 |
95 |
60 |
90 |
100 |
25 |
|
DN20 |
60 |
110 |
65 |
100 |
110 |
25 |
|
DN25 |
65 |
120 |
75 |
110 |
135 |
25 |
|
DN32 |
80 |
140 |
85 |
120 |
140 |
30 |
|
DN40 |
80 |
155 |
100 |
150 |
150 |
40 |
|
DN50 |
150(75) |
240(150) |
125 |
170 |
150 |
50 |
|
DN65 |
180(98) |
280(150) |
140 |
180 |
160 |
50 |
|
DN80 |
240(120) |
340(200) |
150 |
190 |
170 |
50 |
|
DN100 |
150 |
250 |
170 |
200 |
180 |
60 |
|
DN125 |
180 |
300 |
200 |
245 |
180 |
70 |
|
DN150 |
220 |
350 |
225 |
260 |
200 |
80 |
|
DN200 |
300(200) |
475(375) |
225 |
300 |
230 |
100 |
|
DN250 |
375(250) |
565(440) |
280 |
320 |
250 |
100 |
|
DN300 |
450(300) |
600(450) |
305 |
350 |
300 |
100 |
|
DN350 |
530(350) |
750(600) |
340 |
400 |
350 |
120 |
|
DN400 |
600(400) |
850(650) |
400 |
410 |
350 |
120 |
|
DN450 |
675(450) |
900(700) |
440 |
450 |
400 |
130 |
|
DN500 |
750(500) |
1000(750) |
485 |
500 |
400 |
130 |
|
DN600 |
900(600) |
1200(900) |
550 |
600 |
450 |
130 |
|
DN700 |
1050(700) |
1400(1050) |
650 |
700 |
500 |
150 |
|
DN800 |
1200(800) |
1600(1200) |
700 |
800 |
500 |
150 |
Explanation:
1.90 elbows,radius of bend: R=1.0DN;R=1.5DN;R=3DN.
2.if DN>200,proposed bend radius is R=1.0DN
3.if 200≥DN≥80,proposed bend radius:
4.If DN<80,heating bend need be applied. Bend radius can be R=3DN, or using injection plastic parts.
5.If the taper's two end diameter different is less than double of the diameter,the taper's length is H3; if the different is larger than treble of the diameter,the length is 1.5-1.8 times of H3.
6.Non-standard and special fittings can be fabricated according to the drawing or designing.
7.Flanges size D,D1,D2 can be selected according to HG20592-20635-97(Steel flange,washer, fastener)
Product Description:
Excellent anti-corrosion and anti-aging performance.lower flow resistance,saving energy
Highly improved brittleness in cool surrounding,with a excellent anti-impact performance
High intensity,good anti-pressure performance
Increase the operating temperature,decreased the coefficient of heat expanding
Excellent insulator on electricity, no electrochemical corrosion.
lighter. It is only 1/4-1/6 of steel pipes.
